Sync Energy 7.4kW Home Charger Installed in Maidenhead

We recently completed a Sync Energy 7.4kW home charger installation in Maidenhead, SL6 5JW. The homeowner already owned the charger and needed our team to handle the full installation and setup. One of our NAPIT-certified electricians managed a tricky cable routing challenge and got the system live and configured within the same visit. The customer can now charge their car instantly at the full 7.4kW output, pulling a steady 32 amps. This is exactly what they needed.

What was the main challenge with this Maidenhead installation?

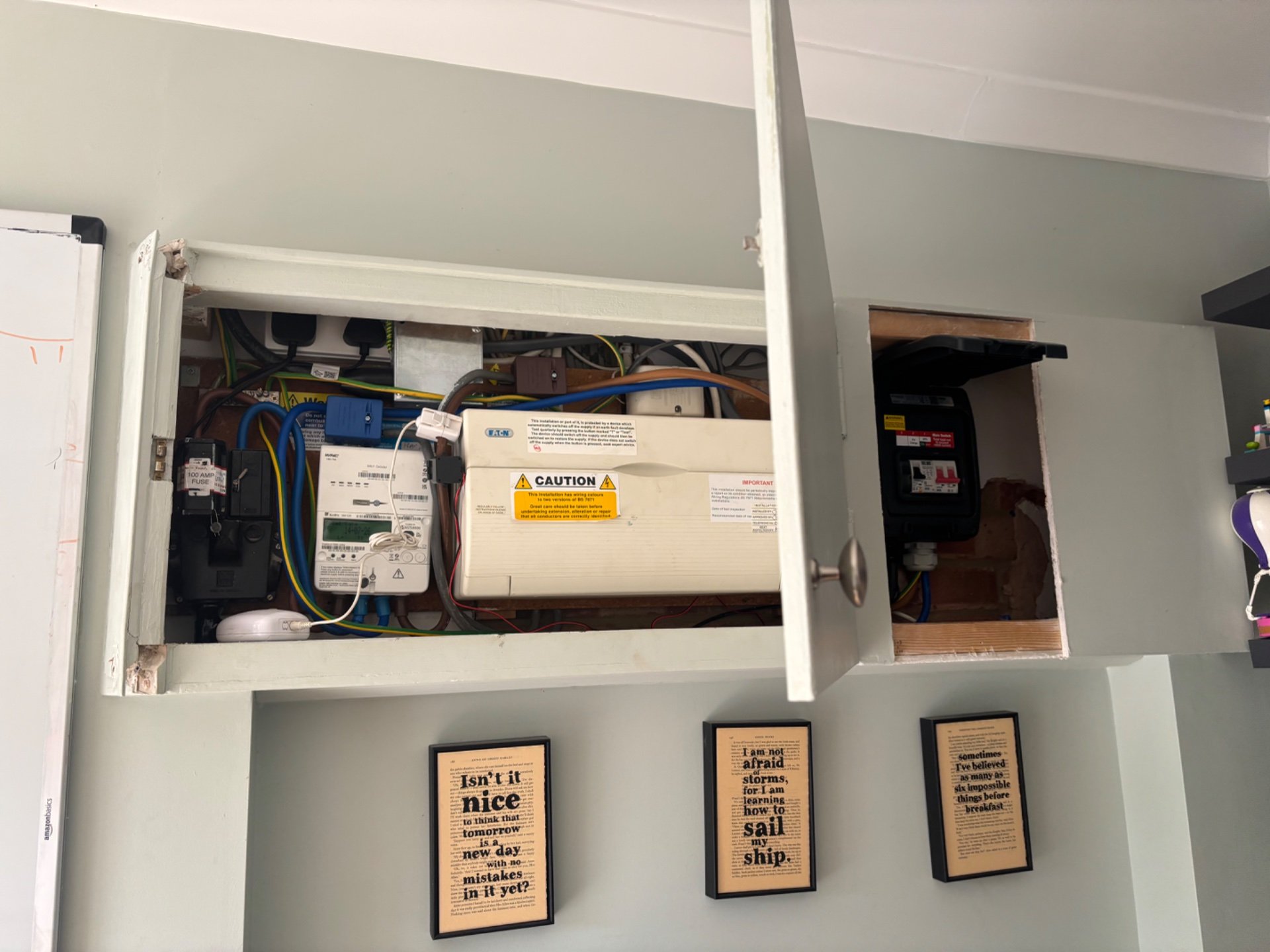

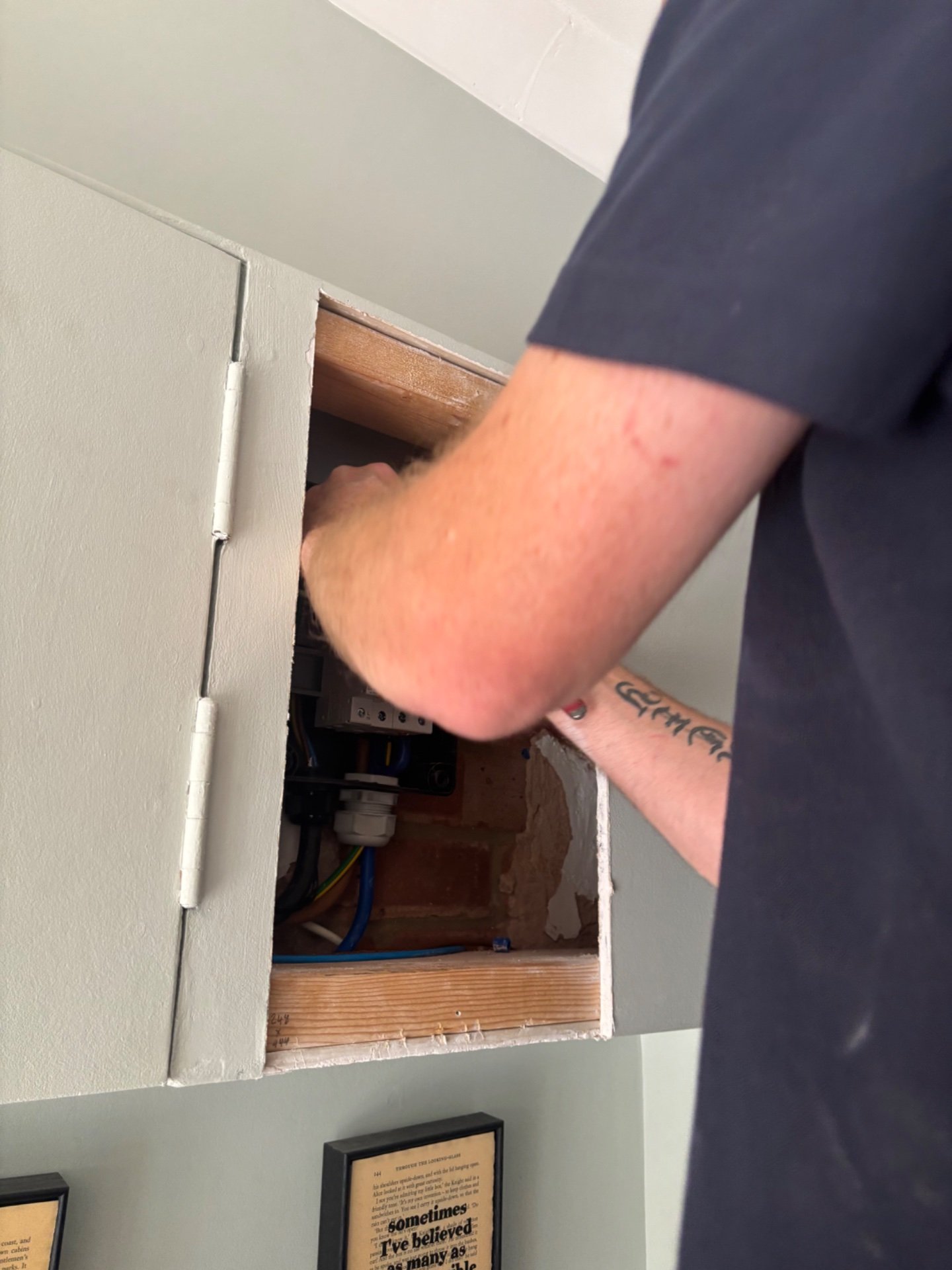

The biggest hurdle on this job was the location of the incoming electrical supply. It sat in a really tight space above head height, which made a direct cable run impossible. Our electrician had to think carefully about the route.

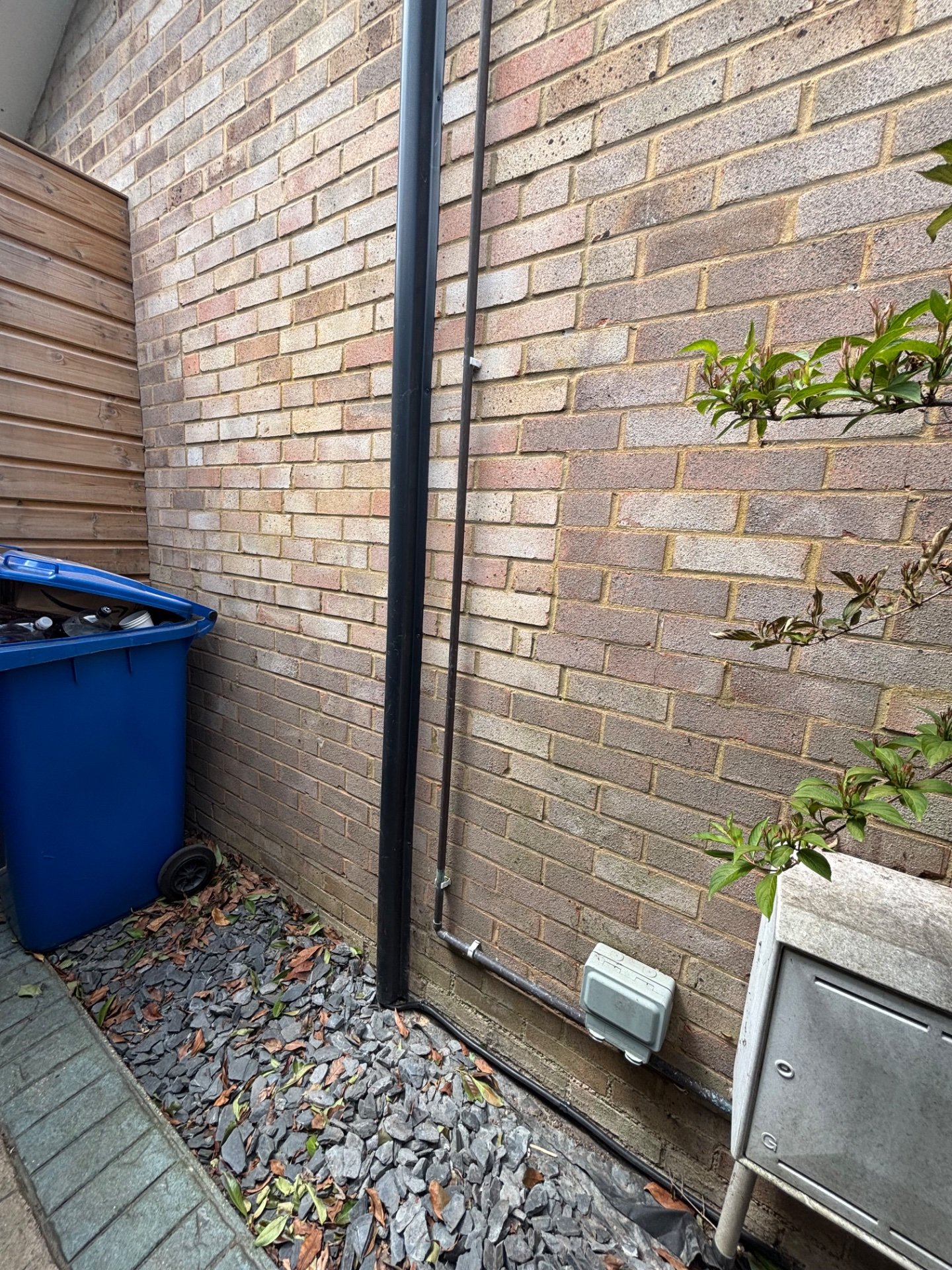

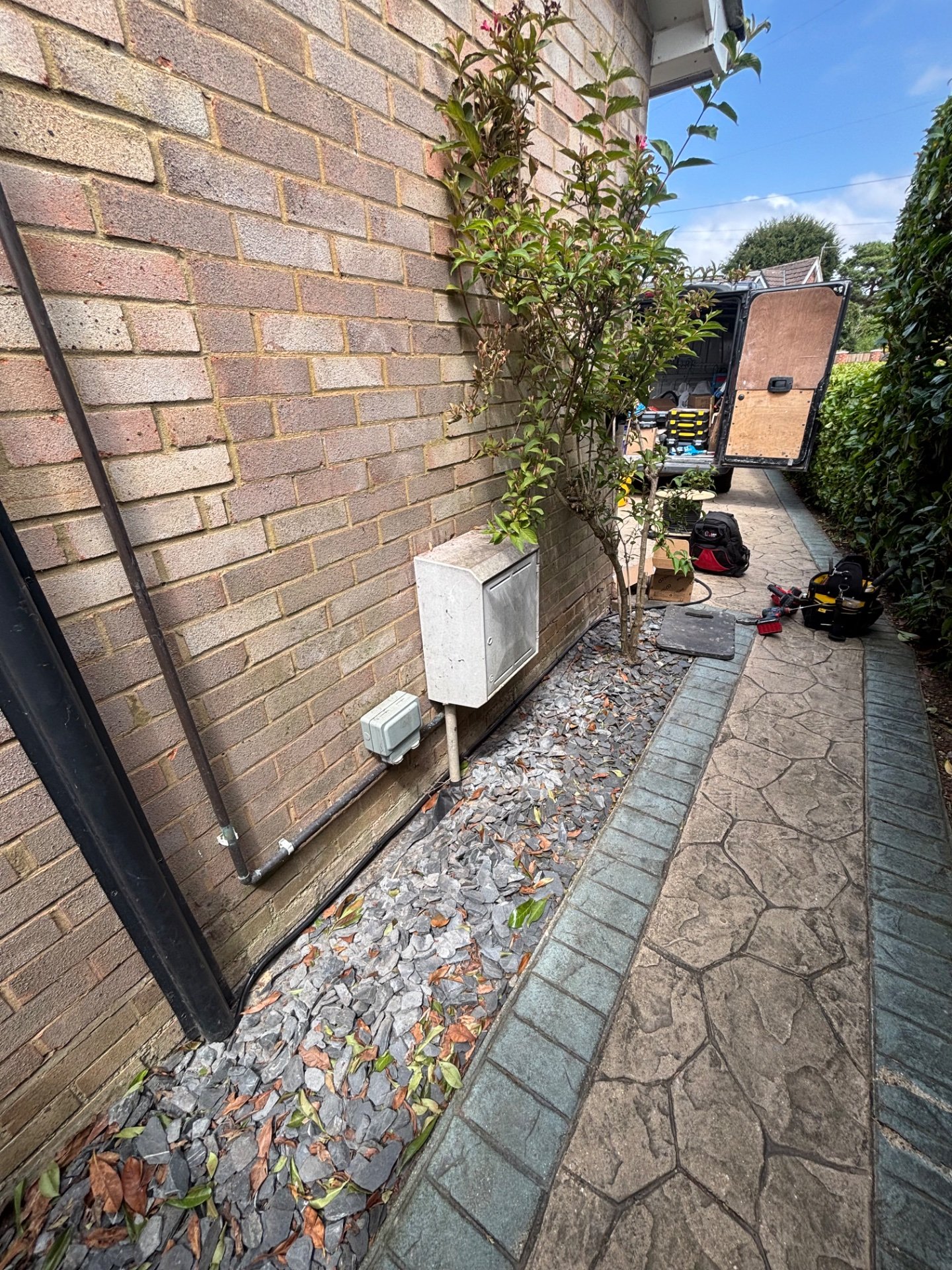

Instead of forcing a path through the wall at that awkward height, we took the cable up through the ceiling into the loft. From there, it came back out through the external wall and followed an existing cable run that was already in place. This existing route was protected by plastic trunking, so we used that same pathway to keep everything neat and safe.

The total cable run came to 15 metres. That's a significant distance, but by using the loft space and the existing infrastructure, we avoided any damage to the property and kept the installation clean. Many Chilterns properties — especially Victorian and Edwardian homes in Maidenhead, SL6 5JW — require careful cable route planning from the fuse board to the garage or driveway. Our free in-person site survey picks up these challenges before any work is agreed, so there are no surprises.

How did we get the charger set up and working?

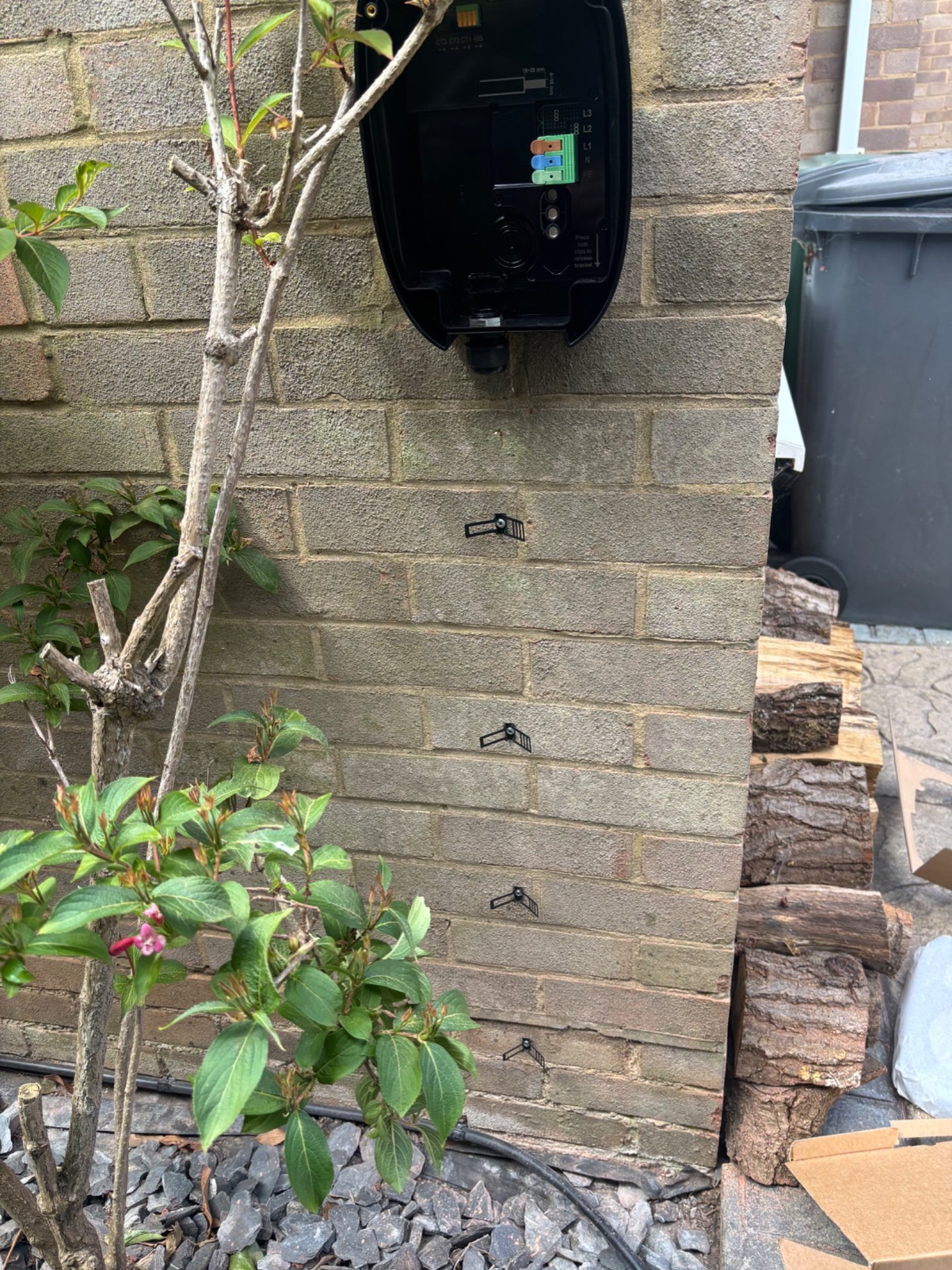

Once the cable was in place and connected, our electrician configured the Sync Energy charger and connected it to the internet. The system needed to be set up properly so the homeowner could use all the smart features and monitor their charging.

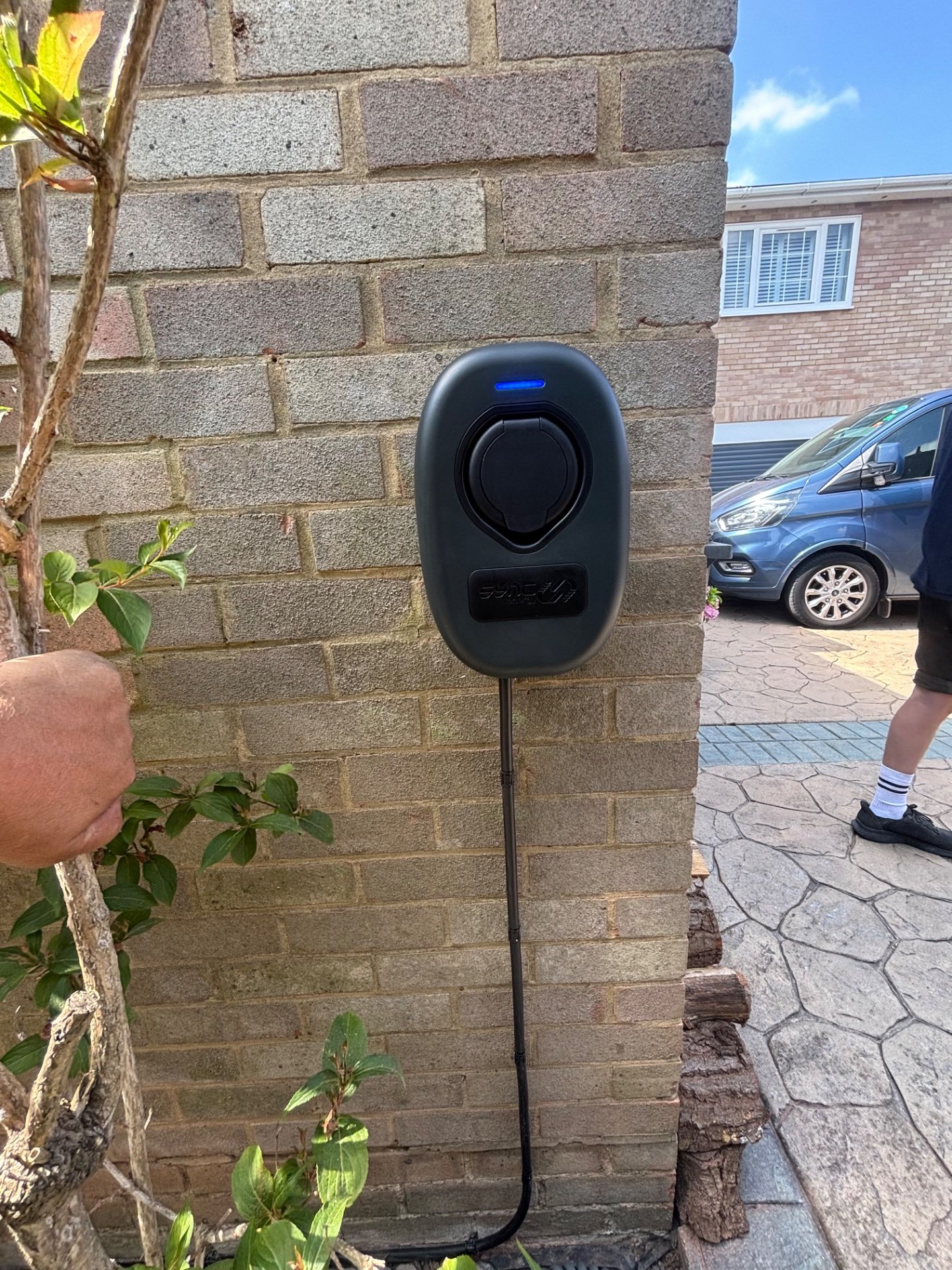

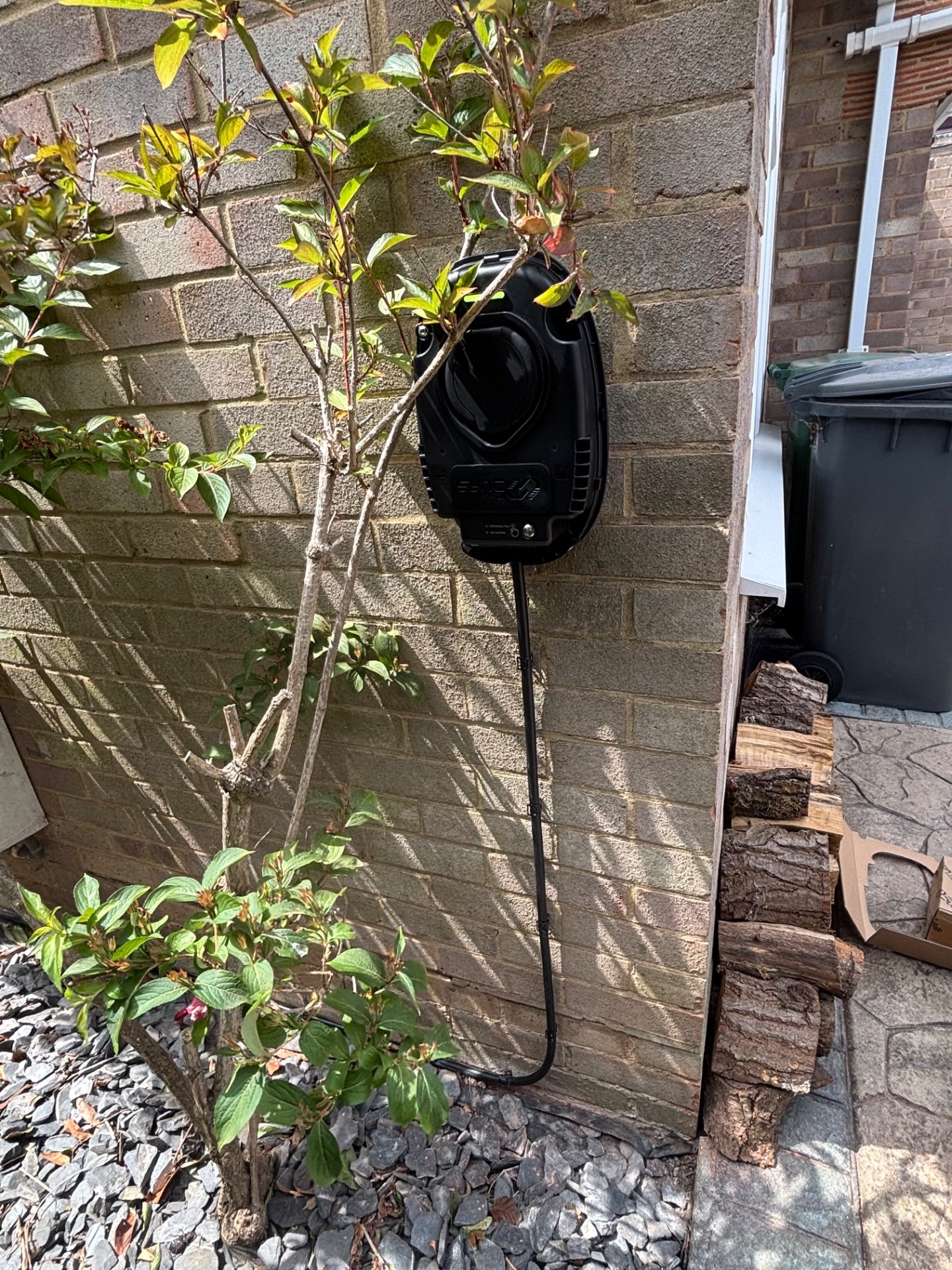

We left the job with the customer able to charge their car instantly. The charger is pulling the full 7.4kW output at 32 amps, which is exactly what this system is designed to do. There were no issues with the electrical supply or the charger itself — everything worked first time.

If you're thinking about EV charger installation in the Chilterns, this job shows why the initial survey matters. We spotted the tight space problem before we started, planned the route, and executed it smoothly.

Why did the customer choose a labour-only installation?

The homeowner had already purchased their Sync Energy 7.4kW charger before contacting us. They needed a qualified electrician to install it safely and get it working. This is a common scenario — sometimes people buy the hardware themselves and then need professional installation.

We're happy to work on labour-only jobs like this one. What matters is that the installation is done to standard, the charger is properly configured, and the customer can use it safely from day one. We don't cut corners just because we didn't supply the equipment.

The customer was very happy with the result. They got their charger installed by a qualified team, and they're now charging at full power whenever they need to.

What does a 7.4kW charger actually deliver?

A 7.4kW home charger like the Sync Energy model operates at 32 amps and delivers a steady 7.4 kilowatts of power to your vehicle. This is one of the most common domestic charger sizes in the UK.

At this power level, you'll add roughly 25-30 miles of range per hour of charging, depending on your vehicle's efficiency. For most people, overnight charging is more than enough to cover daily driving. You're not waiting around — the car charges while you sleep.

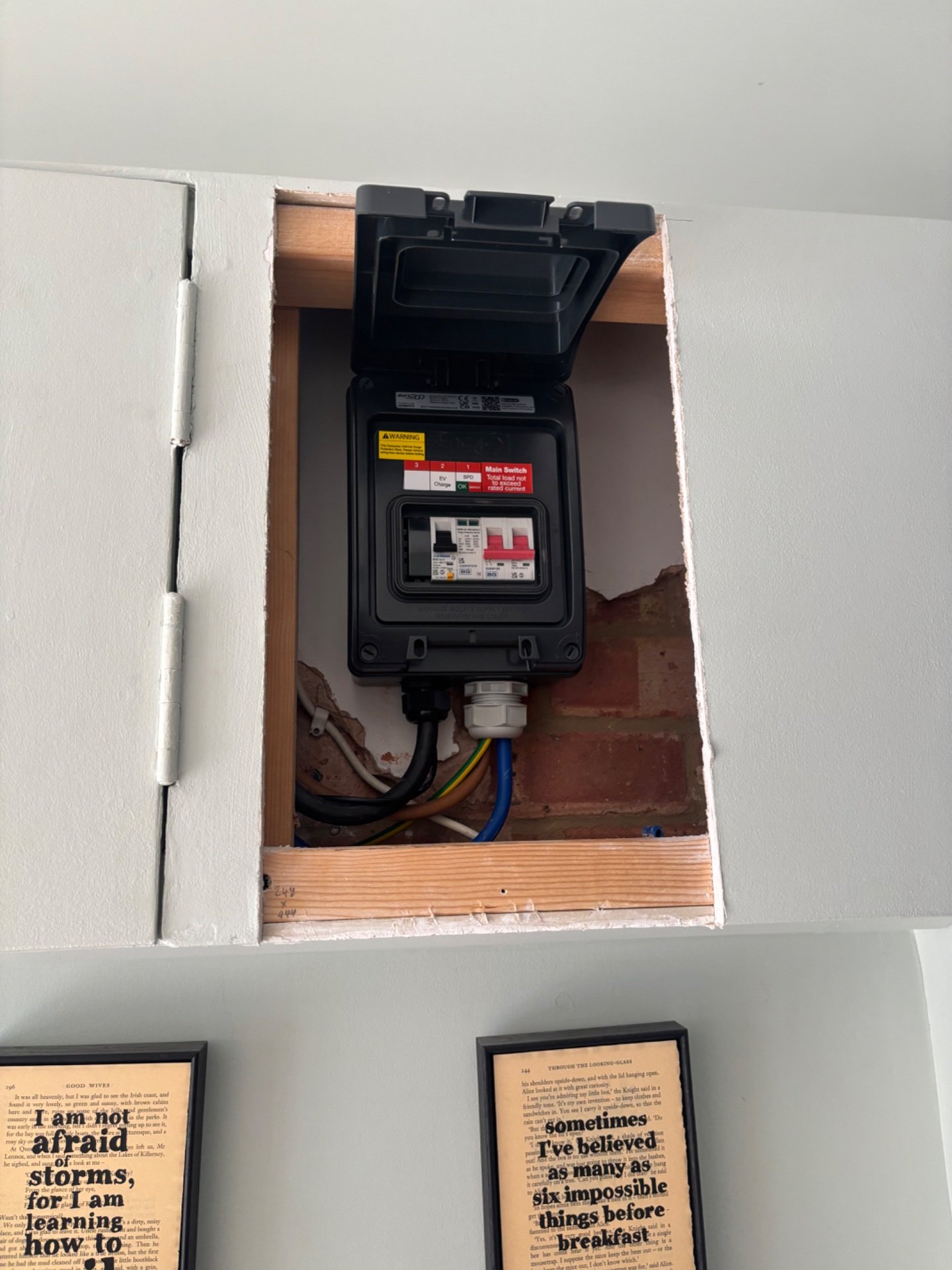

The 7.4kW output requires a dedicated circuit from your consumer unit and proper earthing. Our electricians make sure all of this is in place and tested before we hand over the keys. If you're considering battery storage or solar panel installation alongside your charger, we can advise on how these systems work together to maximise your energy independence.

Is this the right charger for a Maidenhead home?

For most UK homes with off-street parking, a 7.4kW charger is the sweet spot. It's powerful enough to charge overnight, but it doesn't require a three-phase supply or any DNO upgrade in most cases.

Maidenhead sits within the UK Power Networks distribution area. If your home is on a single-phase supply — which most domestic properties are — a 7.4kW charger will work without any issues. We liaise directly with UK Power Networks where a connection upgrade is needed, but this job didn't require one.

The Sync Energy charger is reliable, straightforward to use, and built to last. It's a solid choice for homeowners who want a dependable way to charge at home without unnecessary complexity.

What happens after installation?

Once your charger is installed and configured, it's ready to use. You'll get a user manual and any access codes or app logins you need. Our team will walk you through the basics before we leave.

The charger itself requires very little maintenance. It's weatherproof and designed to sit outside year-round. If you ever have questions or need support, you can always contact us on 01494 977298.

If you're ready to install an EV charger at your Maidenhead home, the first step is a free in-person site survey. We'll visit your property, assess the cable route, check your electrical supply, and give you a clear picture of what's involved. There's no obligation and no forms to fill in. Just call or WhatsApp 01494 977298 to book your survey.
